[+] RadiMation®: The smart brain of each EMC test system
Integrated EMI/EMS software for automated EMC measurements. RadiMation
® allows fast and accurate EMC measurements Supports all commercially available EMC equipment.
Immunity Test Solutions

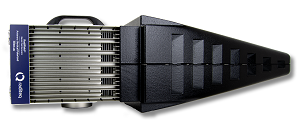

[+] RadiField® 6 Triple A: Revolutionary EMC immunity test solution for 0.8 … 6 GHz
Series of EMC Field Generators. Revolutionary new approach to generate electromagnetic fields from 0.8 GHz to 6 GHz up to 10 V/m at 3 meter or up to 30 V/m at 1 Meter distance. The compact, efficient and scalable solution for all field needs.
[+] RadiField® 6 Total Solution: Complete EMC immunity test package – “out of the box” for 0.8 … 6 GHz
Complete and very attractive priced EMC test solution to generate electromagnetic fields from 0.8 GHz to 6 GHz up to 10 V/m at 3 meter distance.
This complete EMC test solution bundle is based on following proven DARE!! components:
|
|
Multifunctional EMC test system |
|
|
0.8 … 6 GHz @ 10 V/m field generator |
|
|
Mast with automatic H/V positioner |
|
|
9 kHz to 6 GHz signal generator |
|
|
10 MHz to 6 GHz field probe |
|
|
Coaxial switch card |
|
|
Full package EMC test Software |
- Complete set of test accessories
|
|
| |
|
[+] RadiField® 18 Triple A: Revolutionary EMC immunity test solution for 6 … 18 GHz
Series of EMC Field Generators. Revolutionary new approach to generate electromagnetic fields from 6 GHz to 18 GHz up to 75 V/m at 1 Meter distance.
The compact, efficient and scalable solution for all field needs.
Mainframe

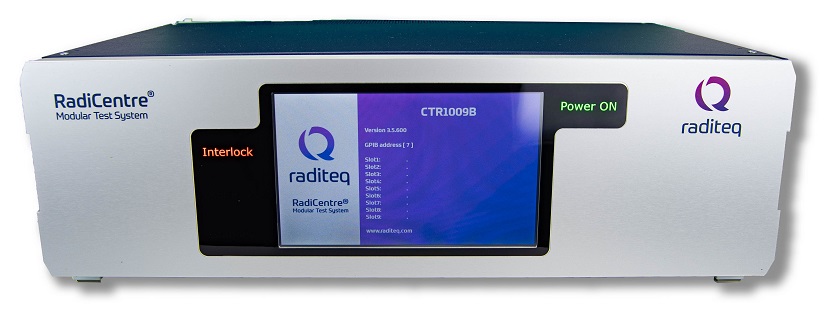

[+] RadiCentre®: The heart of each EMC test system
One-, two- or seven-slot 19-inch rack mountable system. For RadiSense
®, RadiPower®, RadiGen®, RadiControl®, RadiMate®, RadiLink® and RadiSwitch® modules.
Signal Generators

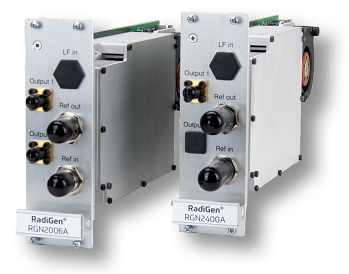

[+] RadiGen®: The affordable and flexible EMC RF Signal Generator
Family of EMC / RF signal generators for different frequency ranges.
E-Field Sensors

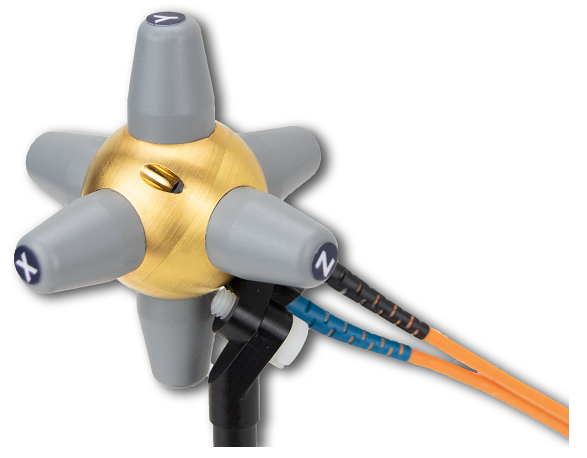

[+] RadiSense®10: Laser powered, isotropic E-field probe 9 kHz to 12 GHz
High accuracy, 6 measurement axes with superb isotropy.
[+] RadiSense®18: Laser powered, isotropic E-field probe 30 MHz to 18 GHz
Precise measurements at extremely small dimensions.

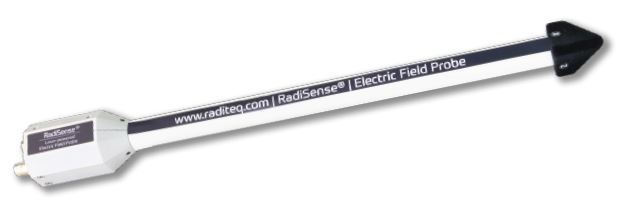

[+] RadiSense®: Laser powered, ultra compact series of EMC field probes
This unique family of battery-free (laser powered) isotropic E-field sensors allows measurements with field strengths from 0.25 V/m up to 4000 V/m in the frequency range of 10 kHz to 18 GHz. Its small dimensions make it the ideal probes for measurements in small cells and non-stop measurements.
Power Meters
[+] RadiPower®: low band extension (4 kHz)
To be used for MIL-STD 461 CS-114 from 4 kHz to 200 MHz

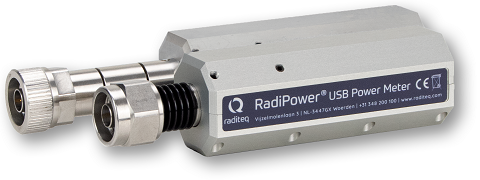

[+] RadiPower®: Complete range of precision EMC/RF power meters for EMC and Telecom applications.
From 9 kHz to 18 GHz, CW, Burst/Pulse and Wireless versions. Due to the high speed, even at low power, it is the ideal power meter for fast and accurate measurements.
Switching

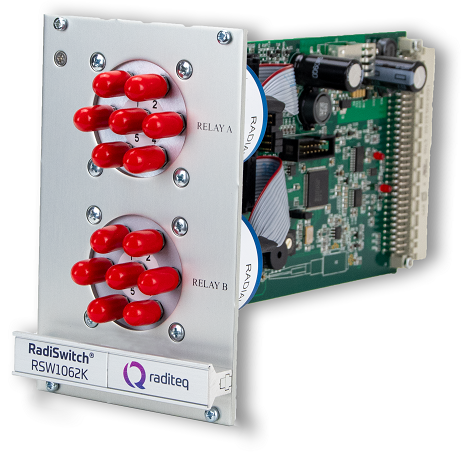

[+] RadiSwitch®: Perfect solution for switching RF signals
Flexible switch modules for low loss switching of high frequency signals. Several switch card versions available with SPDT or SP6T relays in BNC, N, SMA (18 GHz) and K (40 GHz) with RF power levels up to 700 W. All switch modules are intended for use in the RadiCentre
®.
Control
[+] RadiControl®: Universal controller for EMC turntables and antenna masts
Full control over virtual any brand of antenna tower and/or turntable.
